Audio-Technica AT-VM520xEB/H VMx Headshell & Dual MM Cartridge Combo Kit

Highlights

• Elliptical bonded stylus (0.3 x 0.7 mil) tracks the record groove with accuracy for outstanding audio reproduction
• Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
• Ultra-lightweight aluminum die-cast body keeps vibration to the bare minimum
• OFC (oxygen-free copper) lead wires for exceptional sound quality
• Elongated through holes enable precise cartridge positioning and overhang adjustment

Description

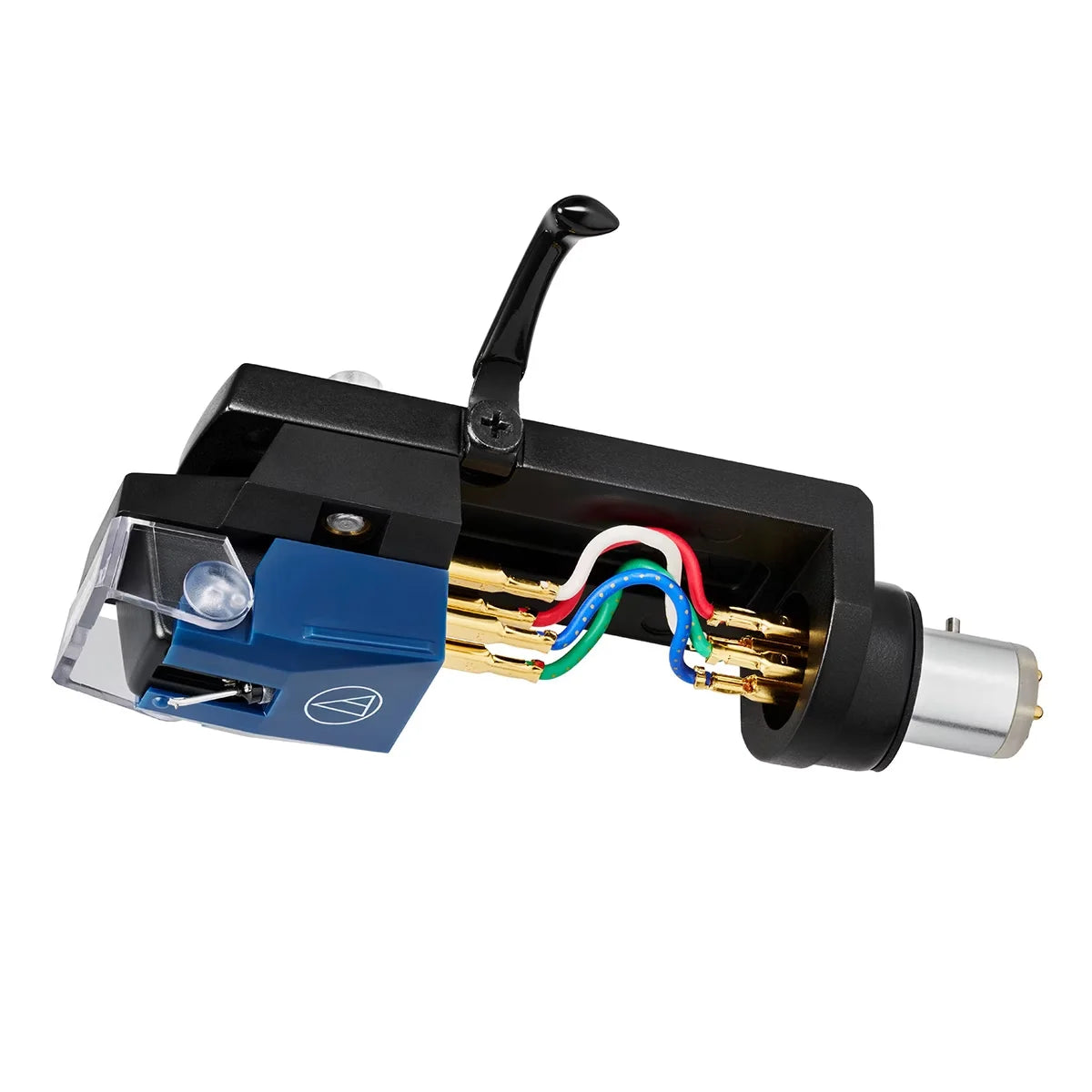

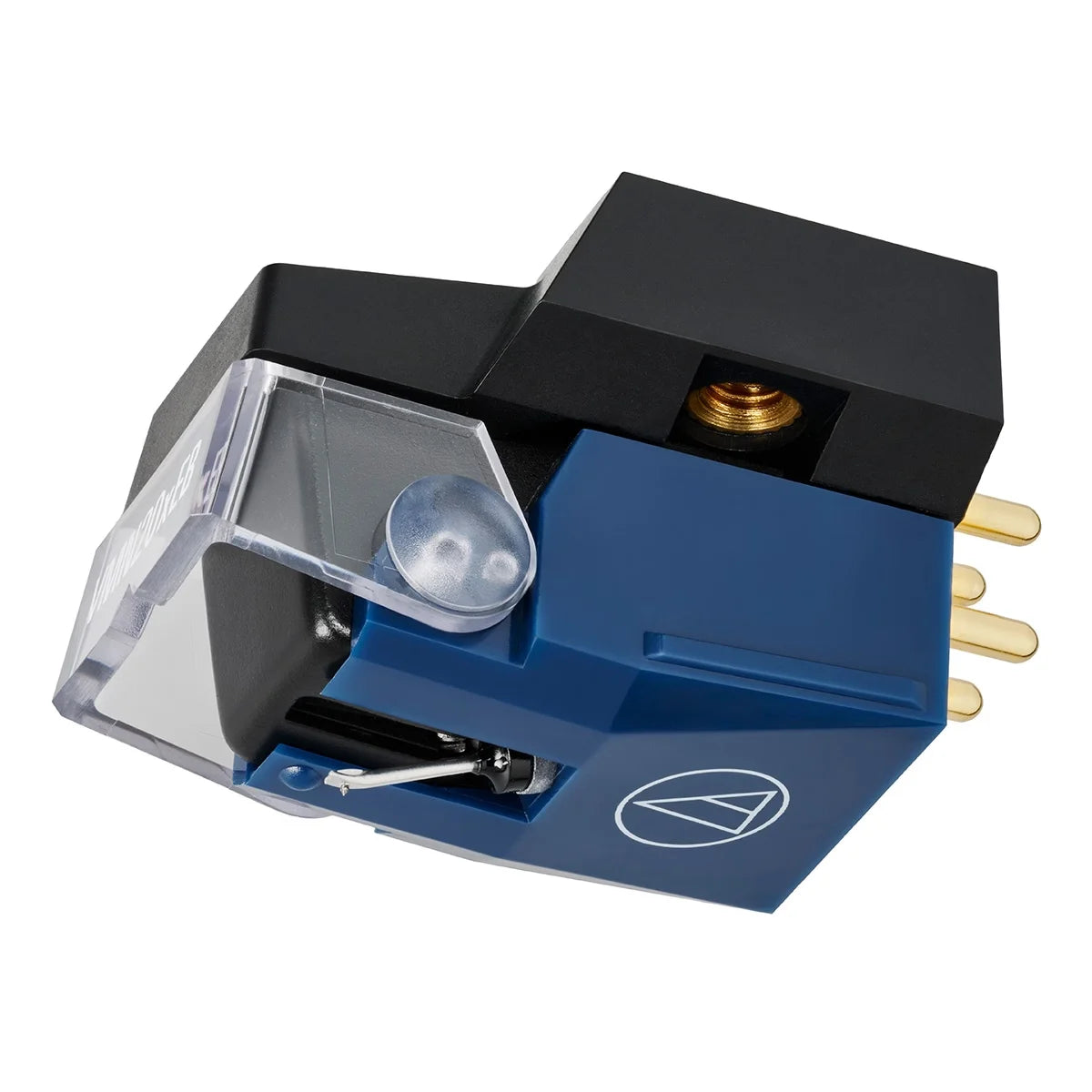

The AT-VM520xEB/H combo kit includes the AT-VM520xEB elliptical bonded dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM520xEB is part of the updated AT-VMx series which introduces material and design changes to further refine the VM sound offering responsive playback that is especially sensitive to the dynamism of musical expression.

FeaturesAT-VMx Dual Moving Magnet Cartridge
•Elliptical Bonded Stylus (0.3 x 0.7 mil)
•Paratoroidal Coils Improve Channel Separation Channel Balance and Transient Response
•Center Shield Plate Reduces Crosstalk
•Durable Low-Resonance Polymer Housing
•Aluminum Cantilever
•Compatible with Any Turntable Headshell That Accepts 1/2 Cartridges

AT-LT10 Universal -Mount Headshell
•For 4-Pin Turntable Cartridges with or Without Threaded Inserts
•Ultra-Lightweight Aluminum Die-Cast Body Keeps Vibration to the Bare Minimum
•Elongated Through Holes Enable Precise Cartridge Positioning and Overhang Adjustment
•OFC (Oxygen-Free Copper) Lead Wires for Exceptional Sound Quality
•Slip-Resistant Finger Lift Allows Stylus to Be Placed Precisely on the Record
•Includes Mounting Screws

What's in the Box
•AT-VM520xEB/H VMx Headshell Dual MM Cartridge Combo Kit
•Installation Hardware
•Manual

Specifications
•Type: VM
•Frequency response: 20 to 20000 Hz
•Output voltage: 5.0 mV (1 kHz 5 cm/sec.)
•Channel separation: 24 dB (1 kHz)
•Output balance: 1.5 dB (1 kHz)
•Tracking force: 1.8 to 2.2 g (2.0 g standard)
•Coil impedance: 3.2 k ohms (1 kHz)
•DC resistance: 750 ohms
•Recommended load impedance: 47 k ohms
•Recommended load capacitance: 150 to 250 pF
•Coil inductance: 480 mH (1 kHz)
•Static compliance: 23 10-6 cm/dyne
•Dynamic compliance: 7 10-6 cm/dyne (100 Hz)
•Stylus: Elliptical bonded
•Stylus: curvature radius 0.3 0.7 mil
•Cantilever: Aluminum pipe
•Vertical tracking angle: 20
•Dimensions: 2.7 0.73 0.85
•Weight: 18.3 g (0.65 oz)
•Replacement stylus (sold separately): AT-VMN20xEB
