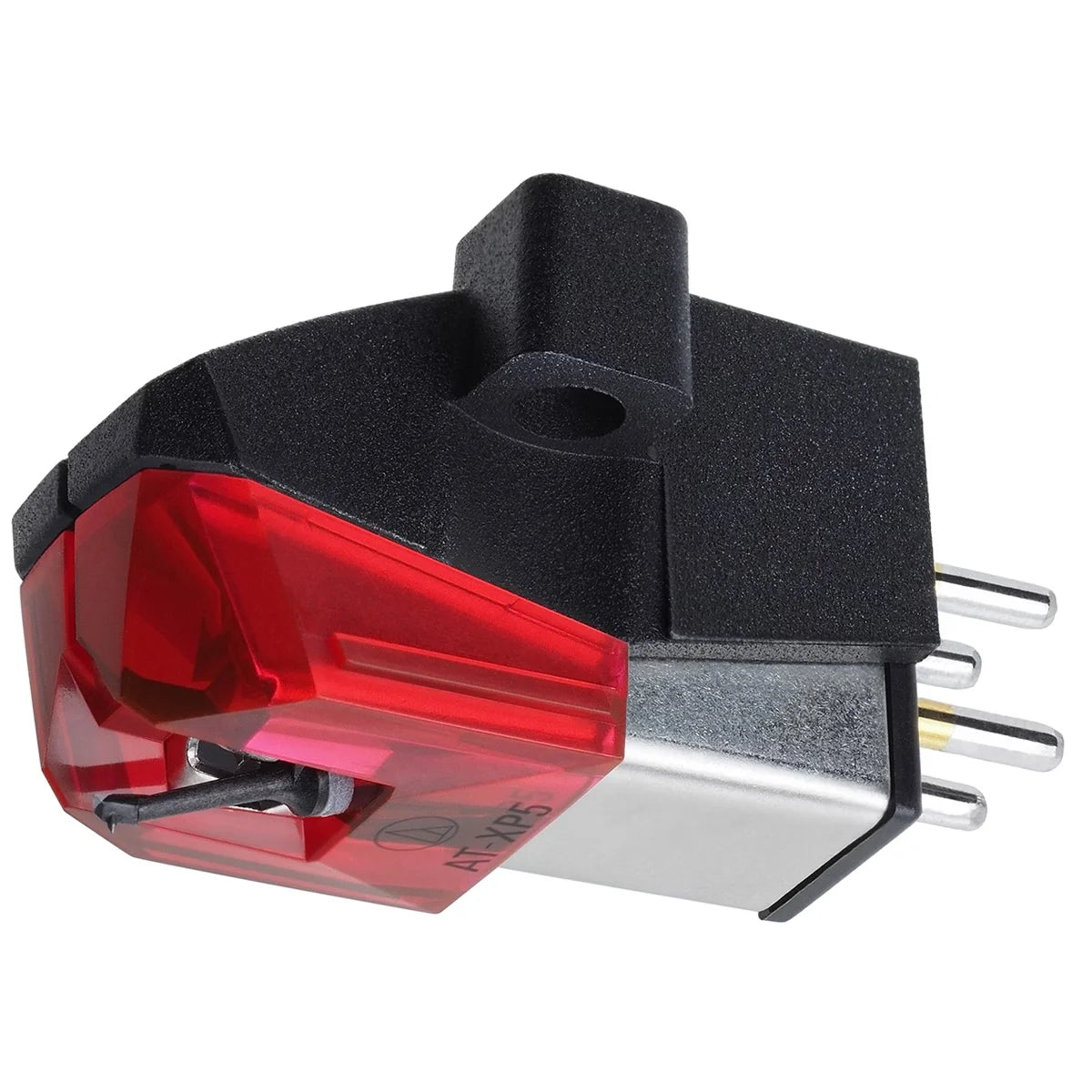

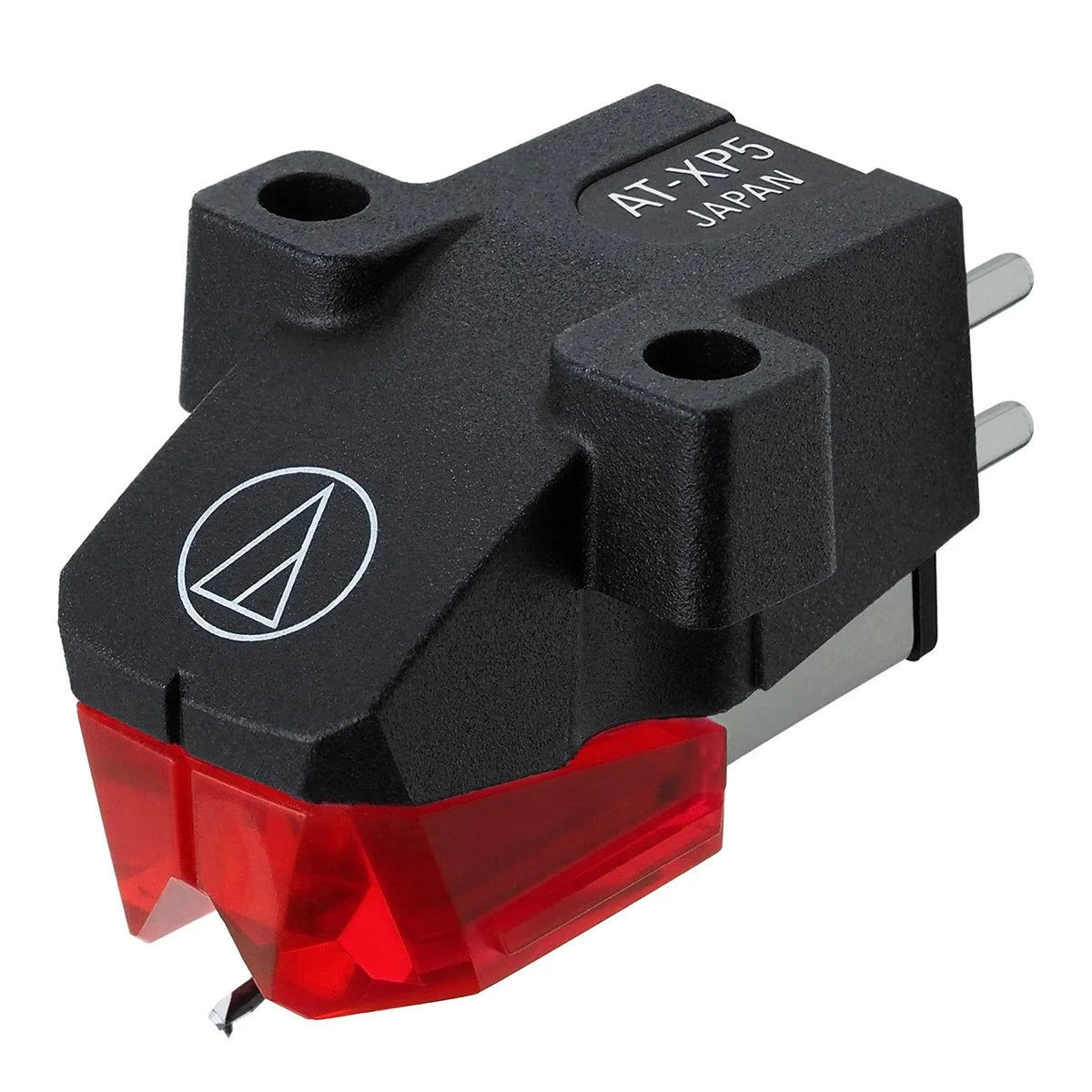

Audio-Technica AT-XP5 MM DJ Cartridge

Highlights

• Delivers a powerful output level of 5.5 mV, suitable for professional DJ use
• Features a 0.3 x 0.7 mil elliptical bonded stylus for precise tracking and excellent audio reproduction
• Equipped with a carbon fiber-reinforced ABS cantilever and nylon wire suspension for accurate tracking
• Adjustable tracking force ranging from 2.0 to 4.0 grams, with a standard setting of 3.0 grams
• Constructed from polyphenylene sulfide (PPS) and glass fiber, ensuring durability and stability

Description

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5mV and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Features
•0.3 x 0.7 mil elliptical bonded stylus tip
•Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
•5.5mV high-level output
•Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
•Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
•Design offers maximum visibility of the stylus tip
•Great tracking and channel separation for high-fidelity sound

What's in the Box
•AT-XP5 MM DJ Cartridge

Specifications
•Frequency response: 20 - 18000Hz
•Channel separation: 20dB at 1kHz
•Vertical tracking force: 2.0 - 4.0g (3.0g standard)
•Stylus construction: Bonded round shank
•Recommended load impedance: 47000 ohms
•Output: 5.5mV (1kHz 5cm/sec)
•Channel balance: 2.0dB (1.kHz)

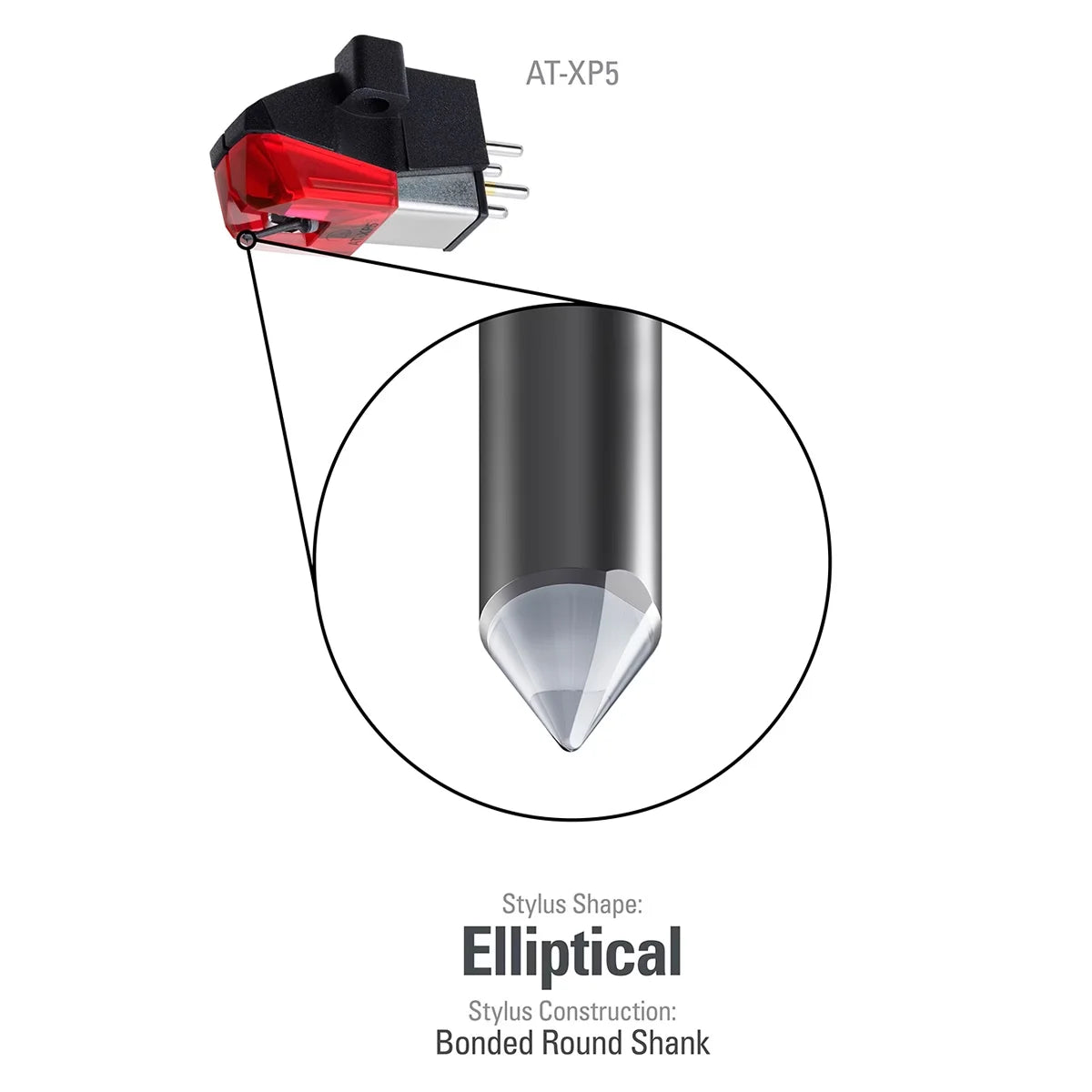

•Stylus shape: 0.3 x 0.7 mil elliptical
•Cantilever: Carbon fiber-reinforced ABS
•Mount: Half-inch
•Replacement stylus: ATN-XP5
•Coil impedance: 6.7k ohms (1kHz)
•DC resistance: 990 ohms
•Recommended load capacitance: 100 to 200pF
•Coil inductance: 1.0H (1kHz)
•Vertical tracking angle: 20
•Dimensions (H x W x D): 0.68" x 0.67" x 1.2"
•Weight: 0.22 ounces
